Using a Toshiba WLM-20U2 in Windows 7
Follow the description here where you replace "Panasonic" with "Toshiba", and "USB\VID_04DA&PID_3904" with "USB\ID_0930&0A08".

Wiping disks with dd - speed vs. block size
From the results below it looks like that 4k and above are significantly faster. If you want to minimize cpu time as well, then 64k and 128K are best (at least with the setup above).

Seagate ST3250310AS, 250GB:
block size 512 1k 2k 4k 8k 16k 32k 64k 128k 256k 512k 1M 2M 4M 16M 64M 256M
elapsed time, min:sec 239:43 224:31 214:21 51:06 51:04 51:11 51:12 51:09 51:12 51:11 51:09 51:11 51:10 51:15 51:08 51:13 51:14
cpu time, min:sec 73:01 67:44 65:17 5:35 4:47 4:21 4:13 4:03 4:02 4:11 5:38 7:32 7:54 8:09 8:18 8:20 8:20

"Unbricking" Allwinner A13 tablet
This tablet came with Android 4.0.4 and with a non-original 4.1.2 the camera didn't work. After trying to fix this with adb (adb push "script.bin" /bootfs/script.bin) the tablet seemed dead or bricked. Following the advice here by holding the power button for about 30 seconds, I were able to reflash it with LiveSuit.

Xeon E5520 and Asus P6T SE
Xeons are not officially supported by this motherboard, but the E5520 works (at least with bios 0908). It also works with an E5645.

Asus P7H55-M LX and overclocking
Bios 0406 supports basic overclocking.

Okipage 8w lite and 64 bit windows 7
The driver for 64 bit windows XP works with 64 bit windows 7.

Xeon and P55

I got a Xeon 3430 for half price and some time later I found a good offer on a Gigabyte GA-P55-UD3. They work fine together, and according to the post here, Xeons should work in most (all?) P55 motherboards.

Hitachi HDC-761E camera

I haven't found any home page or manual for this camera - in case you need a manual you can find it here.

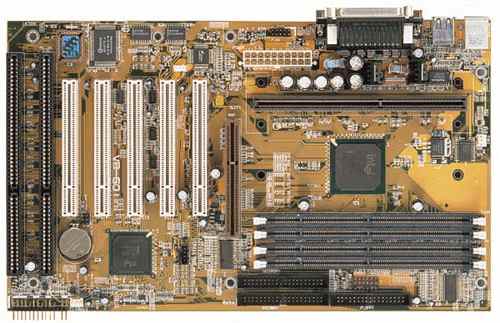

FIC VB-601 motherboard

Download manual.

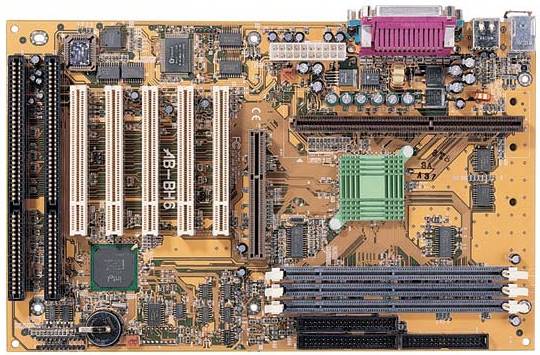

Abit BH6 v1.02

Manual and bios (6/7-00).
